Dimensions: 1480*670*30mm
Weight: 10.5kg

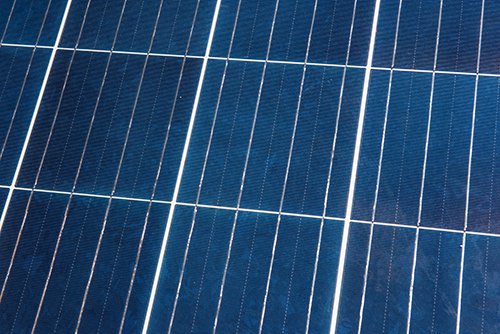

Cells: Polycrystalline
No. of Cells: 36(4x9)
Front Cover: High Transparency Tempered
Sealing Material:EVA

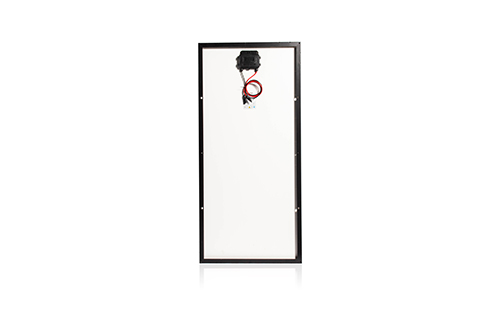

Back Sheet: TPT

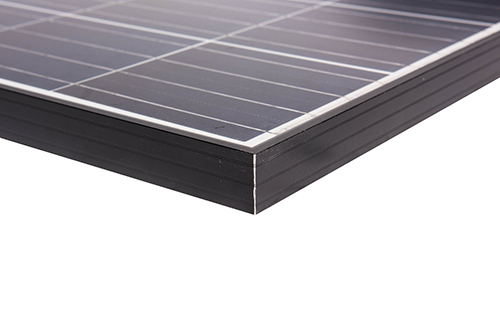

Frame: Aluminium alloy

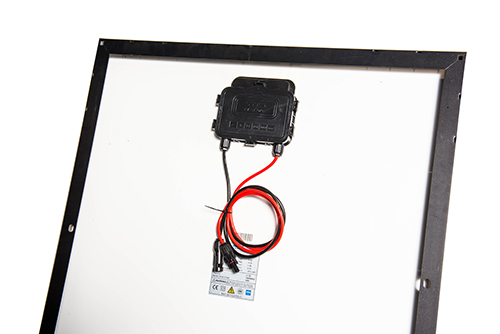

Junction Box: IP65 Waterproof
Output Cables Diameter: 4MM Length:900mm

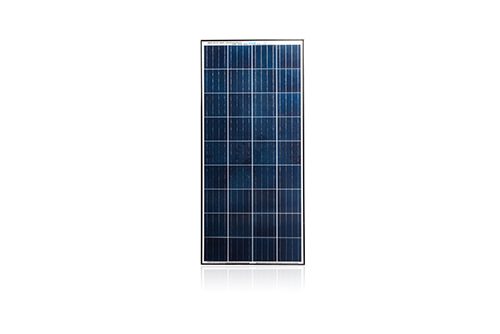

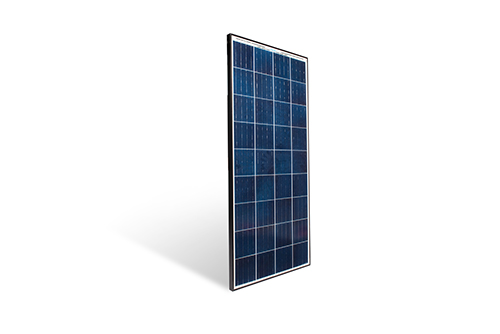

Module Type JL36-156P
Maximum Power (Pmax): 150W
Open-circuit Voltage (Voc): 21.9V
Short-circuit Current (Isc): 8.93A
Maximum Power Voltage (Vmp): 18.1V
Maximum Power Current (lmp): 8.3A
Module Efficiency STC (%): 14.9
Maximum system voltage: 1000V
Temperature coefficients of Pmax: -0.4%/℃
Temperature coefficients of Voc: -0.38%/℃
Temperature coefficients of Isc: +0.04%/℃
