Model: | 156-M | |||||
Material: | Monocrystalline silicon | |||||

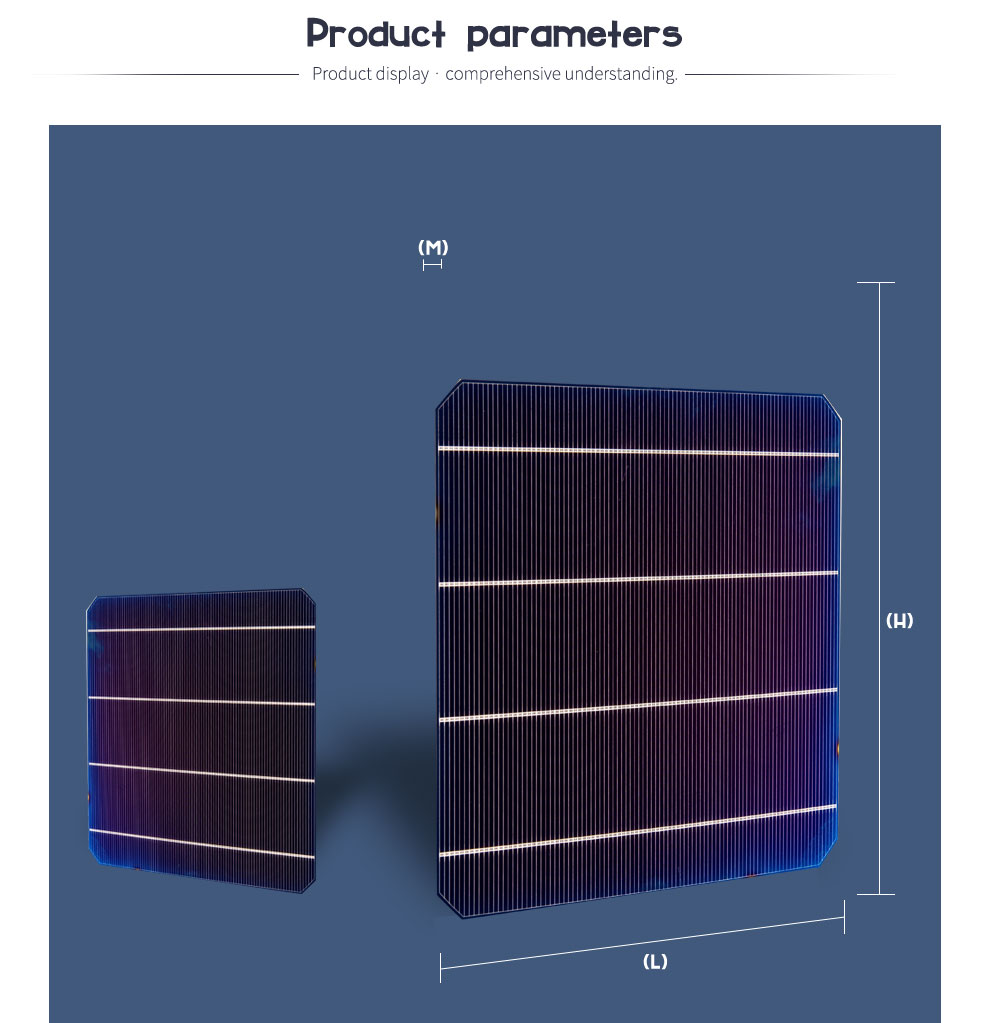

Format: | 156*156mm±0.5mm*200 μm ± 20 μm | |||||
Cell efficiency: | 19.4%-20% | |||||
Maximum power: | 4.8w | |||||
Busbar: | 4BB | |||||

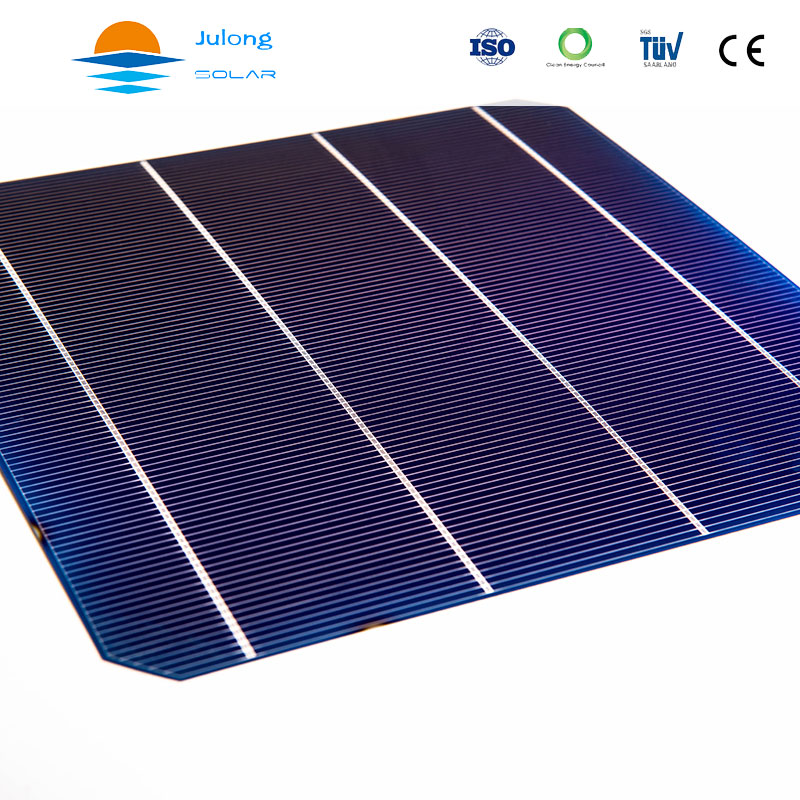

Front (-): | 1.5mm solver bus bars, blue silicon nitride anti-reflecting coating. | |||||

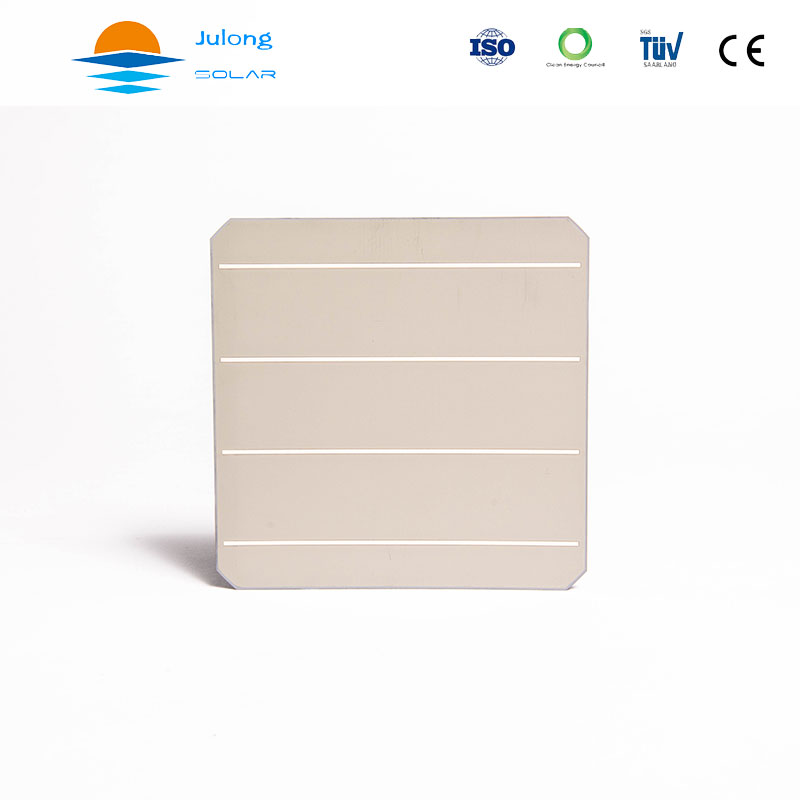

Back (+): | 2.3mm wide soldering pads (silver), aluminium back surface filed. | |||||
Current temperature coefficient: | 0.03%/℃ | |||||
Voltage temperature coefficient: | -0.32%/℃ | |||||
Power temperature coefficient: | -0.41%/℃ | |||||
Module | Eff(%) | Pmpp(W) | Vmpp(V) | Impp(A) | Voc(V) | ISC(A) |
JL156-4BB Mono | 19.6 | 4.788 | 0.544 | 8.829 | 0.642 | 9.32 |
JL156-4BB Mono | 19.7 | 4.813 | 0.545 | 8.856 | 0.643 | 9.331 |
JL156-4BB Mono | 19.8 | 4.837 | 0.547 | 8.875 | 0.639 | 9.354 |
JL156-4BB Mono | 19.9 | 4.862 | 0.548 | 8.9 | 0.632 | 9.337 |
JL156-4BB Mono | 20.0 | 4.886 | 0.549 | 8.921 | 0.629 | 9.396 |
JL156-4BB Mono | 20.1 | 4.91 | 0.549 | 8.954 | 0.626 | 9.429 |
JL156-4BB Mono | 20.2 | 4.94 | 0.55 | 8.996 | 0.667 | 9.436 |
