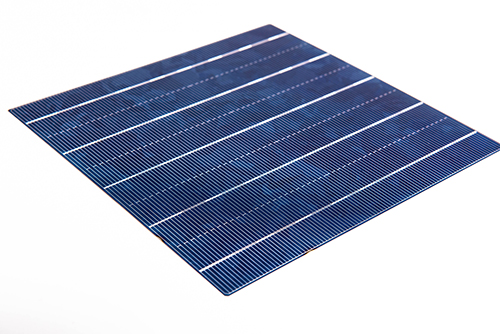

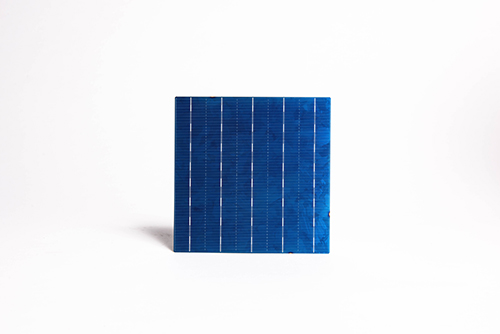

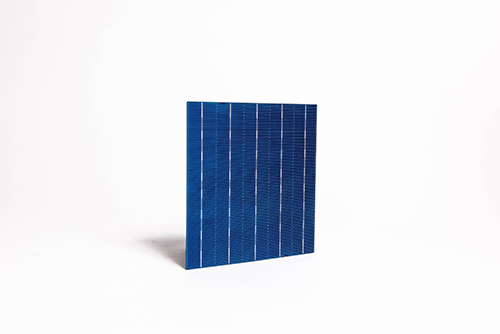

Model | 156*156 poly | |||||
Material | Polycrystalline silicon | |||||
Busbar: | 5BB | |||||
Cell efficiency: | 17.2%-18.6% | |||||
Dimension: | 156*156mm±0.5mm*200 μm ± 20 μm | |||||

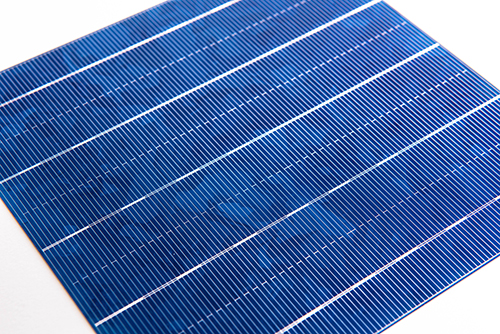

Front (-): | 1.5mm solver bus bars, blue silicon nitride anti-reflecting coating. | |||||

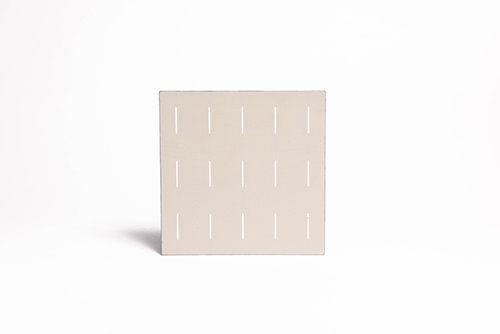

Back (+): | 2.3mm wide soldering pads (silver), aluminium back surface filed. | |||||
Current temperature coefficient: | +0.03%/℃ | |||||
Voltage temperature coefficient: | -0.32%/℃ | |||||
Power temperature coefficient: | -0.41%/℃ | |||||
Module | Eff(%) | Pmpp(W) | Vmpp(V) | Impp(A) | Voc(V) | ISC(A) |
JL156-5BB Poly | 18.9 | 4.64 | 0.544 | 8.559 | 0.639 | 9.072 |
JL156-5BB Poly | 18.8 | 4.62 | 0.543 | 8.528 | 0.638 | 9.052 |
JL156-5BB Poly | 18.7 | 4.6 | 0.541 | 8.519 | 0.637 | 9.033 |
JL156-5BB Poly | 18.6 | 4.57 | 0.540 | 8.499 | 0.636 | 9.011 |
JL156-5BB Poly | 18.5 | 4.55 | 0.538 | 8.476 | 0.635 | 8.988 |
JL156-5BB Poly | 18.4 | 4.53 | 0.537 | 8.451 | 0.633 | 8.964 |
JL156-5BB Poly | 18.3 | 4.5 | 0.536 | 8.426 | 0.632 | 8.939 |
JL156-5BB Poly | 18.2 | 4.48 | 0.534 | 8.371 | 0.63 | 8.885 |
JL156-5BB Poly | 18.1 | 4 | 0.531 | 8.32 | 0.629 | 8.848 |
