Dimensions: 1065*808*35mm
Weight: 13kg

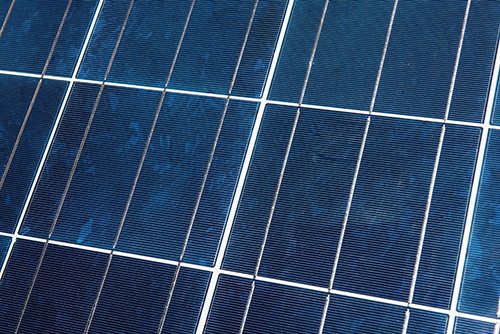

Cells: Polycrystalline
No. of Cells: 48(6x8)
Front Cover: High Transparency Tempered
Sealing Material:EVA
Back Sheet: TPT
Frame: Aluminium alloy

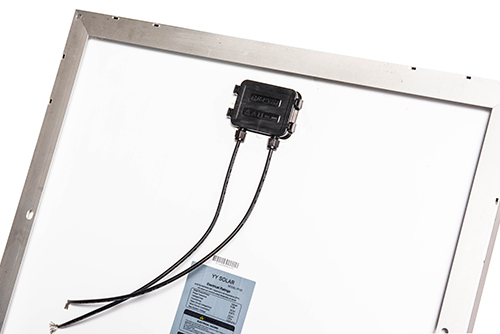

Junction Box: IP65 Waterproof
Output Cables Diameter: 4MM Length:900mm
Module Type JL48-156P
Maximum Power (Pmax): 120W
Open-circuit Voltage (Voc): 24.38V
Short-circuit Current (Isc): 4.92A
Maximum Power Voltage (Vmp): 29.57V
Maximum Power Current (lmp): 5.27A
Module Efficiency STC (%): 16.3
Maximum system voltage: 1000V
Temperature coefficients of Pmax: -0.4%/℃
Temperature coefficients of Voc: -0.38%/℃
Temperature coefficients of Isc: +0.04%/℃
