Dimensions: 1200*540*35mm
Weight: 8.5kg

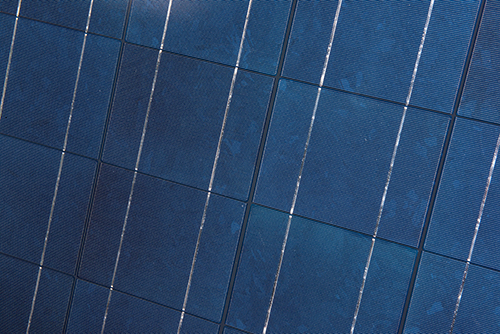

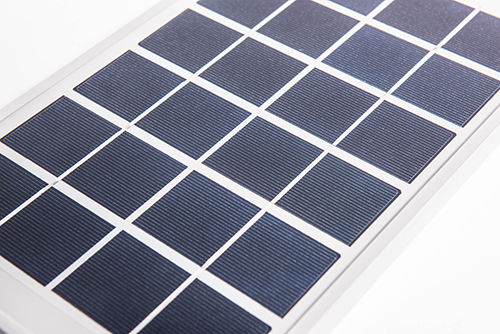

Cells: Polycrystalline
No. of Cells: 36(4x9)
Front Cover: High Transparency Tempered
Sealing Material:EVA
Back Sheet: TPT

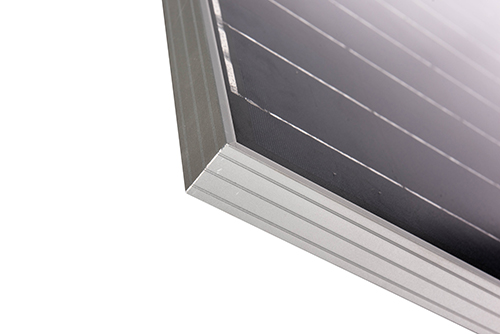

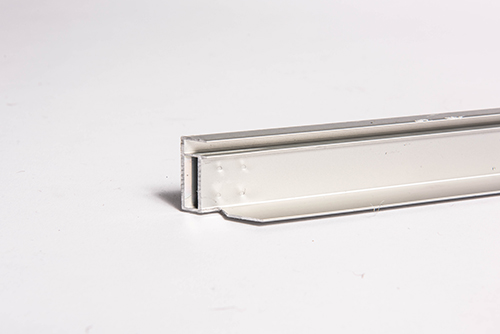

Frame: Aluminium alloy

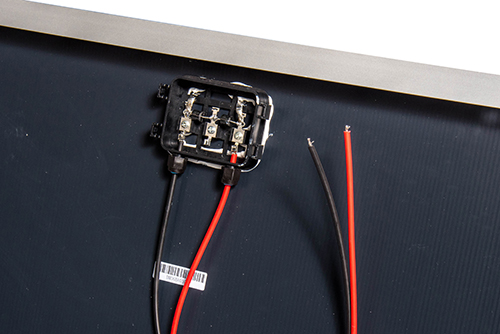

Junction Box: IP65 Waterproof
Output Cables Diameter: 4MM Length:900mm
Module Type JL36-156P
Maximum Power (Pmax): 90W
Open-circuit Voltage (Voc): 22.4V
Short-circuit Current (Isc): 5.3A
Maximum Power Voltage (Vmp): 18.5V
Maximum Power Current (lmp): 4.86A
Module Efficiency STC (%): 13.6
Maximum system voltage: 1000V
Temperature coefficients of Pmax: -0.4%/℃
Temperature coefficients of Voc: -0.38%/℃
Temperature coefficients of Isc: +0.04%/℃
