Dimensions: 1640*992*40mm
Weight: 19.5kg

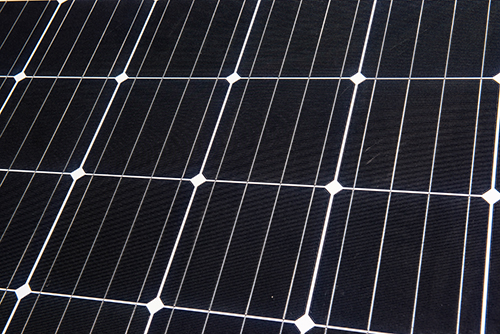

Cells: Monocrystalline
No. of Cells: 60(6x10)
Front Cover: High Transparency Tempered
Sealing Material:EVA
Back Sheet: TPT

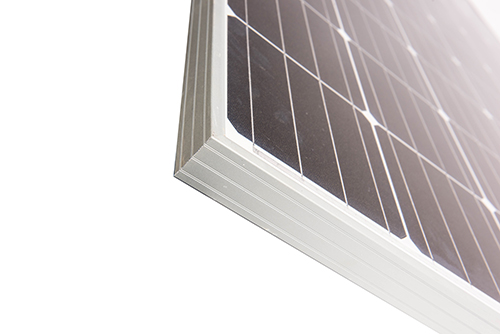

Frame: Aluminium alloy

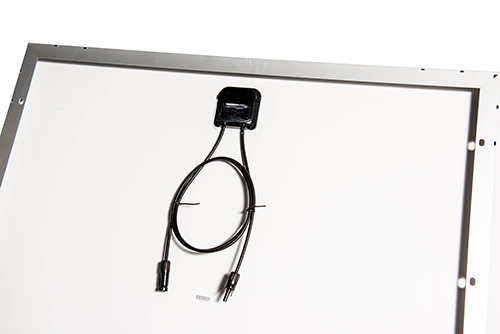

Junction Box: IP65 Waterproof
Output Cables Diameter: 4MM Length:900mm
Module Type JL60-156M
Maximum Power (Pmax): 250W
Open-circuit Voltage (Voc): 37.8V
Short-circuit Current (Isc): 8.75A
Maximum Power Voltage (Vmp): 30.2V
Maximum Power Current (lmp): 8.27A
Module Efficiency STC (%): 15.5
Maximum system voltage: 1000V
Temperature coefficients of Pmax: -0.4%/℃
Temperature coefficients of Voc: -0.38%/℃
Temperature coefficients of Isc: +0.04%/℃
