Dimensions: 1640*992*40mm
Weight: 19.5kg

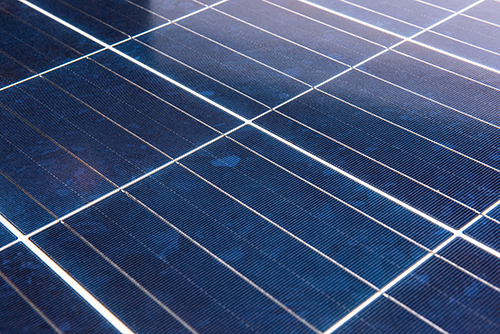

Cells: Polycrystalline
No. of Cells: 60(6x10)
Front Cover: High Transparency Tempered
Sealing Material:EVA

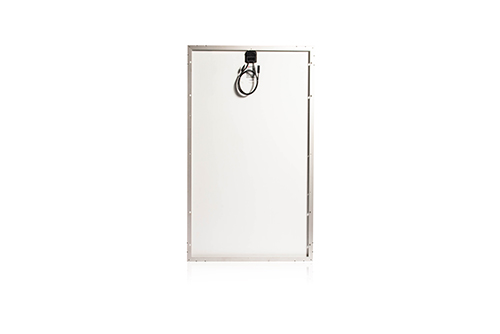

Back Sheet: TPT

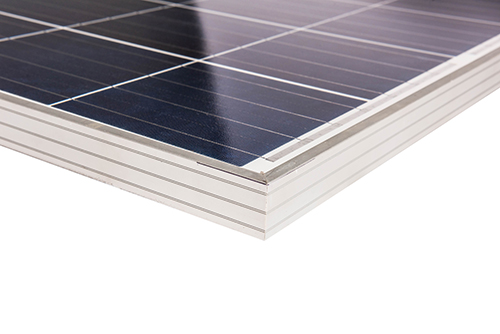

Frame: Aluminium alloy

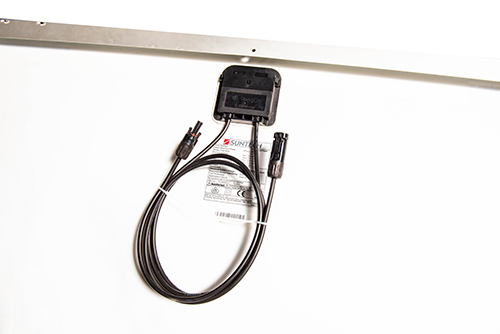

Junction Box: IP65 Waterproof
Output Cables Diameter: 4MM Length:900mm
Module Type JL60-156P
Maximum Power (Pmax): 265W
Open-circuit Voltage (Voc): 38.4V
Short-circuit Current (Isc): 8.98A
Maximum Power Voltage (Vmp): 30.9V
Maximum Power Current (lmp): 8.56A
Module Efficiency STC (%): 16.3
Maximum system voltage: 1000V
Temperature coefficients of Pmax: -0.4%/℃
Temperature coefficients of Voc: -0.38%/℃
Temperature coefficients of Isc: +0.04%/℃
