Dimensions: 340*245*17mm
Weight: 0.95kg

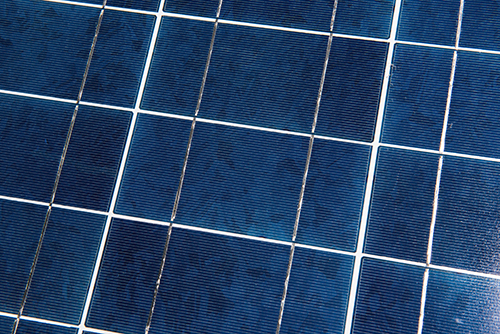

Cells: Polycrystalline
No. of Cells: 36(2x8)
Front Cover: High Transparency Tempered
Sealing Material:EVA
Back Sheet: TPT

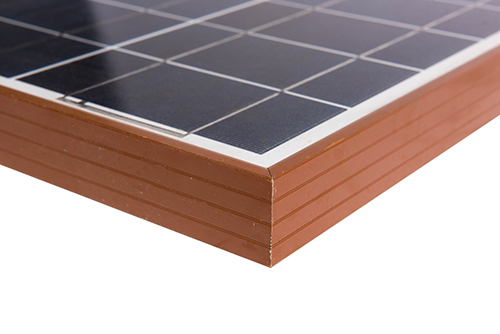

Frame: Aluminium alloy

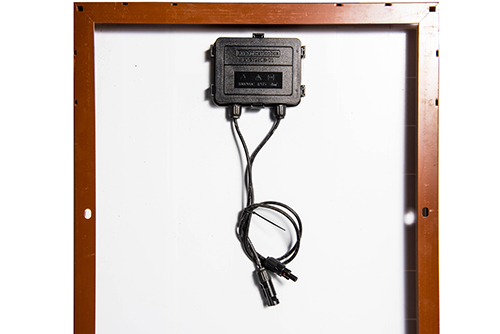

Junction Box: IP65 Waterproof
Output Cables Diameter: 4MM Length:900mm
Module Type JL36-156P
Maximum Power (Pmax): 10W
Open-circuit Voltage (Voc): 21.6V
Short-circuit Current (Isc): 0.63A
Maximum Power Voltage (Vmp): 18V
Maximum Power Current (lmp): 0.56A
Maximum system voltage: 1000V
Temperature coefficients of Pmax: -0.4%/℃
Temperature coefficients of Voc: -0.38%/℃
Temperature coefficients of Isc: +0.04%/℃
